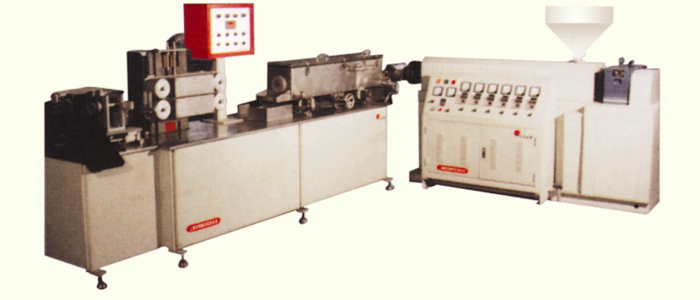

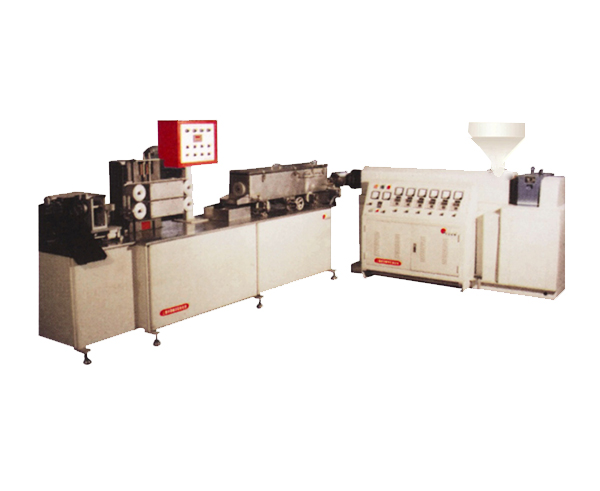

Single layer tube drawing machine
1. Speed: ≥6 M/min
2. Tube scope: φ 16mm ~ φ50mm (φ 60 is alternative)
3. Wall thickness error margin: ± 0.02 mm
4. Extruding machine:
a. motor power: 7.5KW (three phase)
b. electric heating power: 3 *4 KW=12KW (single phase)
2 KW (single phase)
1.5KW (single phase)
c. exhaust fan power: 0.35*4 KW=1.4KW (single phase)
Total power: 24.4KW
5. Tube drawing machine:
a. traction motor power: 0.75 KW (three phase)
b. vacuum electrical machine: 0.81 KW (three phase)
c. slice knife electrical machine: 0.18 KW(three phase)
Total power: 1.74KW
6. Servo slice knife: 1.5*2=3KW (three phase)

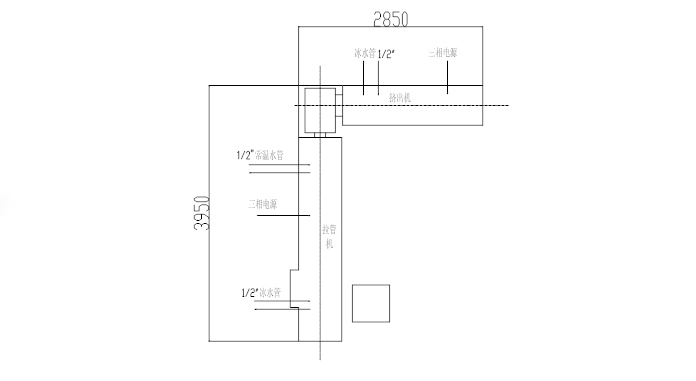

7. Dimensions: 3950mm*2850mm*1600mm(L*W*H)
8. Slice knife frequency: about 100 times/min

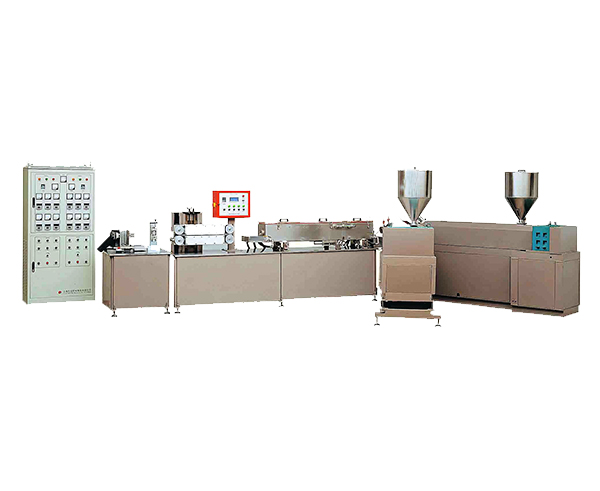

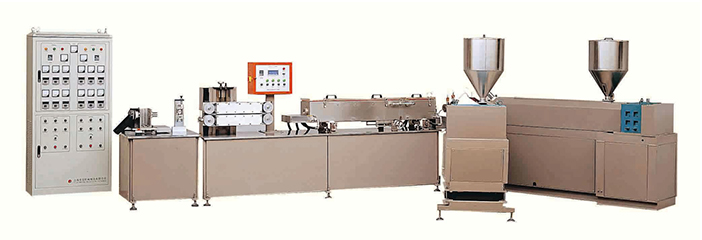

Double-layer tube drawing machine
1. Speed: ≥ 6 M/min
2. Tube scope: φ 16mm ~ φ50mm (φ 60 is alternative)
3. Wall thick error margin:± 0.02 mms
4. Extruding machine:
a. motor power: 7.5KW*2=15KW (three phase)
b. electric heating power: 3 KW *8=24KW (single phase)
2 KW*2=4KW (single phase)
1.5KW*2=3KW (single phase)
c. exhaust fan power: 0.35KW*8=2.8KW (single phase)
Total power: 48.8KW
5. Tube drawing machine:
a. traction motor power: 0.75 KW (three phase)
b. vacuum electrical machine: 0.81 KW (three phase)
c. slice knife electrical machine: 0.18 KW (three phase)
d. double-deck die head: 7.5KW (three phase)
Total power: 9.24KW
6. Servo slice knife: 1.5*2=3KW (three phase)

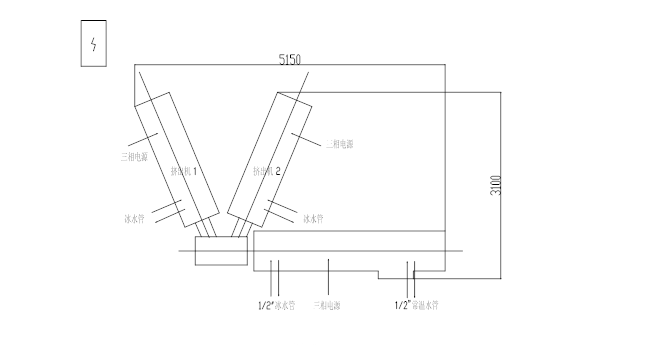

7. Dimensions: 5150mm*3100mm*1600mm(L*W*H)
8. Slice knife frequency: about 100 times/min

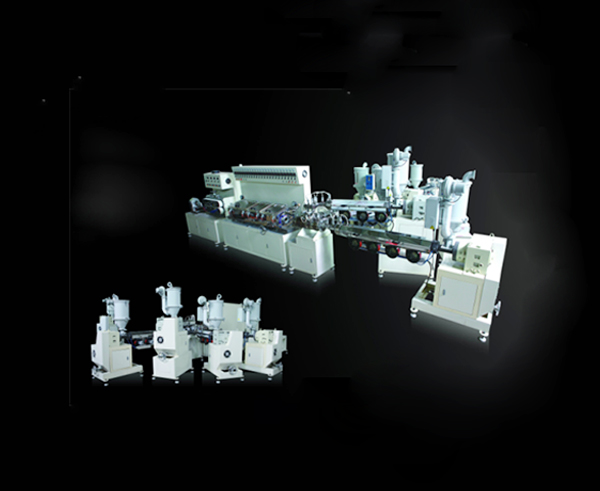

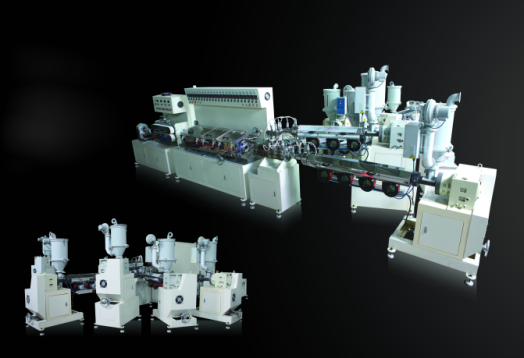

Five-layer tube drawing machine
Main Technical Parameters:
1. Straight line speed: 10.5m/min(max), take φ50mm as an example
2. Cutting speed: 150pcs/min(max)
3. Product standard: φ13mm-φ60mm
4. Electric consumption: 23Kw/h(max)
5. Water circulation: normal temperature water, 1L/h, ice water 5-8℃
6. Screw standard: inner layer and outer layer are both φ50mm. Blocked layer and bonding layer are both φ40mm.
7. Reservoir volume: 4*25KG
8. Dimensions: 8.5m*3.5m*2m
9. Weight: 5T
