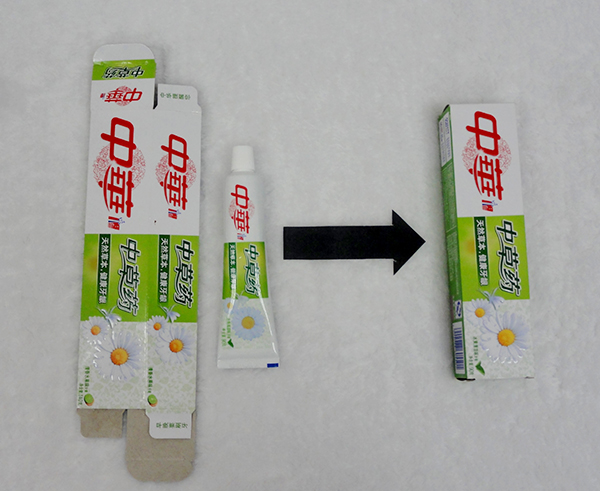

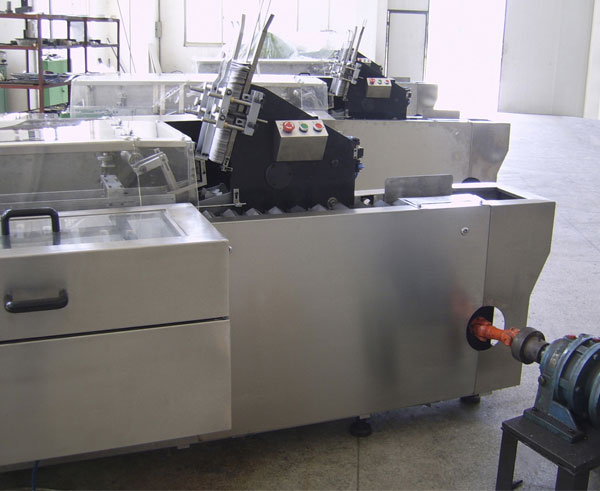

The equipment automatically conveys the product into the conveying station. The station is run by the conveying chain. The insertion: the product is detected in the conveyer basket and controls the paper folding machine to open the carton prior to insertion on synchronized time. The whole process can be divided into four sections: releasing from stack one by one, opening, inserting and closing boxes. A suction cup absorbs single box from stack, moves down to the boxing line. The guide rail locating device fixes the box. Then the pushing board opens the box while two movable locating devices rise underneath, get the box’s sides close from front and back, make the box open at right angles and move into the filling area. After filling the product in to the box, the machine folds the sides of box with the help of side rails, for closing the cover. The push plate pushes the cover to bend, and insert it to make the product tightly packed.
The equipment can work alone or form a production line with other machines.
A. Production speed: <120 boxes/min
B. Motor power: 1.5KW
C. Dimensions of machine: 4290*1135*1500mm
D. Dimensions of folded paper: 85*50-300*20mm
E. Dimensions of box: 110*22*22 -220*50*45mm
A. The machine is stable and reliable in function and has high speed in production.
B. The specification can be folded 1-4 times.
C. No tubes (cream), no suction of box and specification.
D. Empty tube(box) is rejected.
